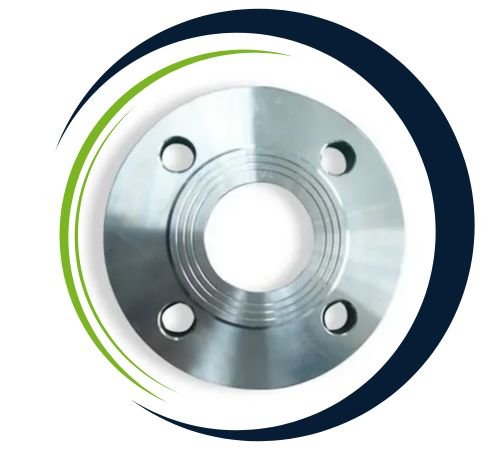

Lukies Flanges is a reputable manufacturer and supplier of Titanium Plate Flanges based in Midland, known for providing top-notch, corrosion-resistant flanges designed for industrial piping systems. These plate flanges are solid, flat discs that create robust, durable connections for pipelines, valves, and various equipment. Crafted from titanium, they boast remarkable corrosion resistance, strength, and lightweight characteristics, making them perfect for high-pressure, high-temperature, and chemically aggressive settings. Lukies Flanges prioritizes precision engineering and complies with international standards, ensuring their flanges are suitable for industries like chemical, petrochemical, desalination, marine, and pharmaceuticals, delivering long-lasting performance, operational safety, and leak-proof connections.
Titanium Plate Flanges are constructed from commercially pure titanium or titanium alloys (grades 1–5), providing exceptional corrosion resistance, a high strength-to-weight ratio, and impressive durability. In terms of mechanical properties, they offer a tensile strength ranging from 240 to 1,050 MPa, yield strength between 170 and 950 MPa, along with excellent ductility and fatigue resistance. The solid plate design guarantees uniform stress distribution and high mechanical integrity. Thanks to titanium’s resistance to acids, chlorides, and seawater, these flanges reliably perform in extreme temperatures, pressures, and corrosive environments, making them ideal for critical industrial piping applications.
| Specifications | ASTM B381 / ASME SB381 |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size | 1 / 2” to 18″ |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Type | Plate Flanges |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Lukies Flanges, a premier supplier in Kinshasa, Congo, specializes in high-quality Titanium Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Titanium Plate Flanges find extensive use in industries such as chemical processing, petrochemical, desalination, marine, pharmaceuticals, and power generation. They are particularly suited for high-pressure pipelines, reactors, heat exchangers, and equipment connections, where mechanical strength and corrosion resistance are paramount. These plate flanges ensure durable, leak-proof connections and can endure harsh chemical, acidic, or saline environments. Common applications include chemical transfer lines and seawater systems, showcasing their versatility and reliability in demanding conditions.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Titanium Gr. 5 | 3.7165 | N56400 |
Yes, we offer custom sizes for Titanium Plate Flanges to meet specific project needs. Our team at Lukies Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@lukiesflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
