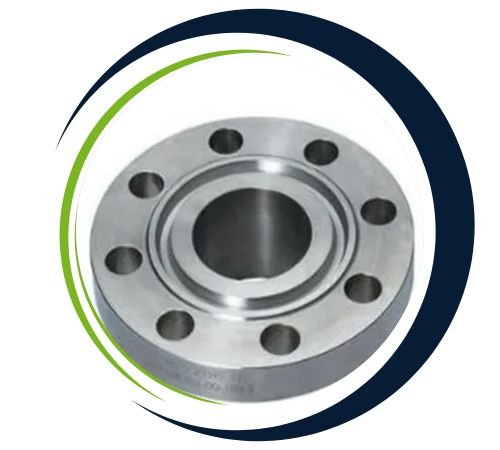

Lukies Flanges is a leading manufacturer and supplier based in Kinshasa, Congo, specializing in high-quality industrial flanges designed for superior performance and durability. With a strong focus on precision engineering and stringent quality control, Lukies Flanges delivers a wide range of products that meet global standards for reliability and strength. The company’s commitment to excellence, innovation, and customer satisfaction has established it as a trusted name in the manufacturing industry. Among its premium offerings, Alloy 20 RTJ Flanges stand out for their exceptional corrosion resistance and mechanical strength in demanding environments.
Alloy 20 RTJ Flanges are composed primarily of nickel (32–38%), chromium (19–21%), and iron, with additions of molybdenum (2–3%), copper (3–4%), and small amounts of carbon, manganese, and silicon. This unique composition enhances resistance to sulfuric acid and chloride-induced corrosion. Mechanically, Alloy 20 offers a tensile strength of around 551 MPa, yield strength of 241 MPa, and excellent elongation of approximately 30%. Its outstanding weldability, formability, and impact toughness make it ideal for chemical, pharmaceutical, and food processing applications where durability and corrosion resistance are essential.
| Specification | ASTM B462 / ASME SB462 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, Alloy 20-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B462 F316 Alloy 20 Flanges |
| Grades | Alloy 20 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

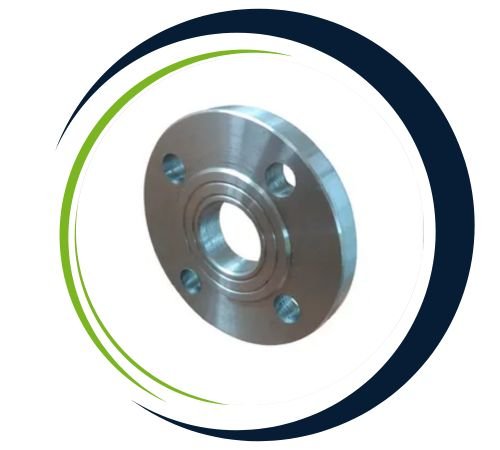

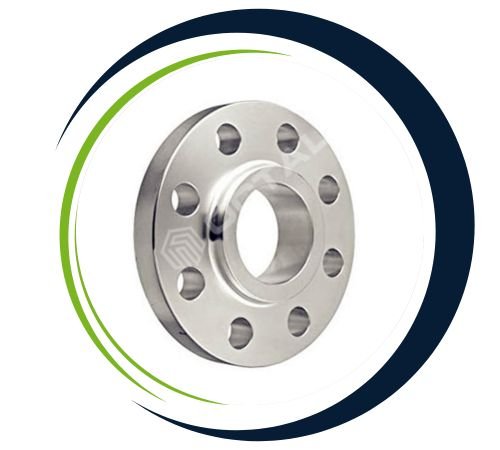

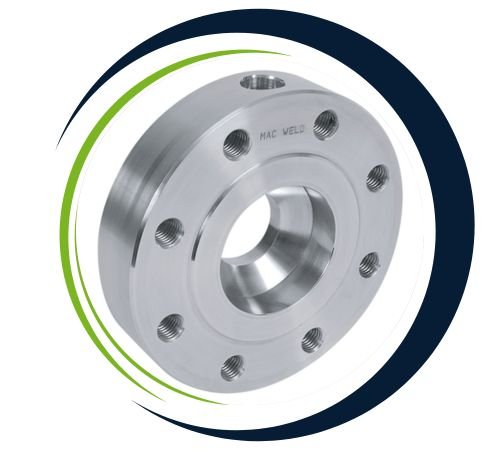

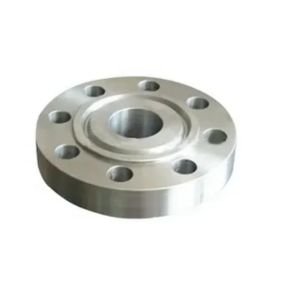

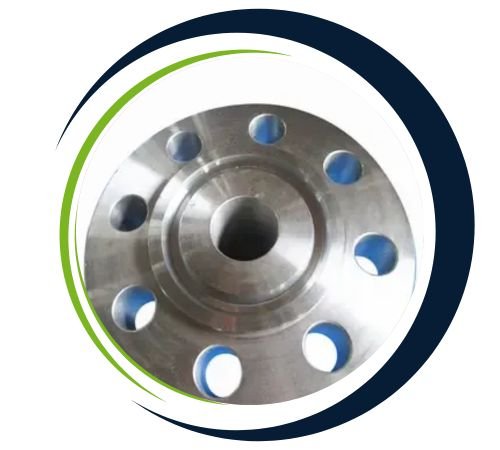

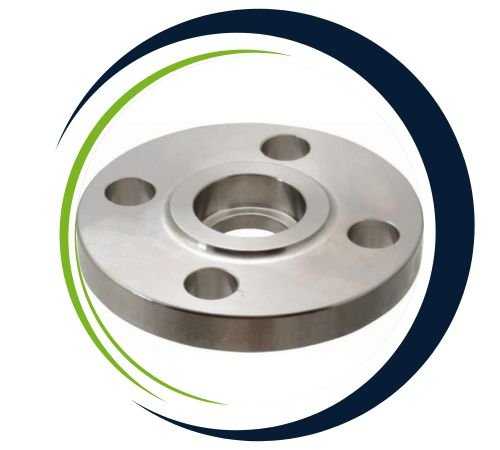

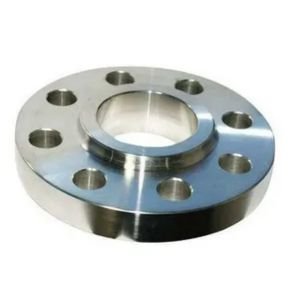

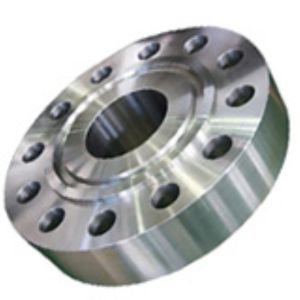

Lukies Flanges, a leading supplier in Kinshasa, Congo, offers an extensive selection of Alloy 20 RTJ Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Alloy 20 RTJ Flanges find extensive use across various sectors, including chemical, petrochemical, pharmaceutical, food and beverage, and power generation. They are particularly suited for high-pressure pipelines, reactors, heat exchangers, storage tanks, and other essential equipment that handle corrosive fluids like sulfuric acid, phosphoric acid, and chlorides. The RTJ flange’s metal-to-metal seal effectively prevents leaks, even in extreme pressures and temperatures. With their blend of corrosion resistance, mechanical strength, and leak-proof performance, these flanges are truly indispensable for critical industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
| ASME/ANSI B 16.5 | RTJ Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | RTJ Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | RTJ Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Alloy 20 RTJ Flanges are widely used in industries that demand superior corrosion resistance and mechanical integrity under high pressure and temperature conditions. They are ideal for chemical processing plants, especially in equipment handling sulfuric acid, phosphoric acid, and nitric acid. In addition, they are employed in the pharmaceutical, food, and beverage industries, where purity and hygiene are crucial. These flanges are also used in heat exchangers, storage tanks, and piping systems for petrochemical and marine applications. Their ability to withstand harsh chemical environments makes them a preferred choice for long-lasting and reliable performance.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
