Operating from the heart of Kinshasa, Lukies Flanges is your trusted local partner for robust industrial solutions. We specialize in the manufacturing and supply of ANSI B16.47 Series B flanges, critical components designed for the most demanding large-diameter piping systems. Our commitment is to deliver not just a product, but reliability and strength, ensuring your projects across Congo and beyond are built on a foundation of quality and local expertise you can count on for performance and durability.
These large-diameter flanges are typically forged from high-strength materials like carbon steel or stainless steel to withstand significant pressure. Their composition is carefully controlled, and through precise heat treatment, they achieve excellent mechanical properties, including high tensile strength and superior yield strength. This ensures they can handle the immense stresses found in major pipelines without deforming, providing a secure and leak-proof connection that maintains system integrity under tough operating conditions.

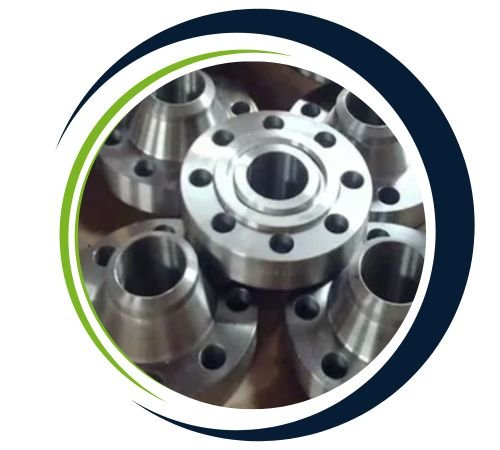

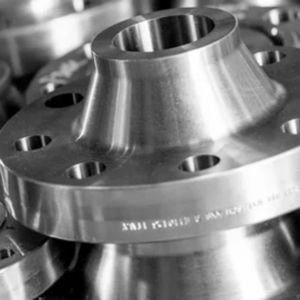

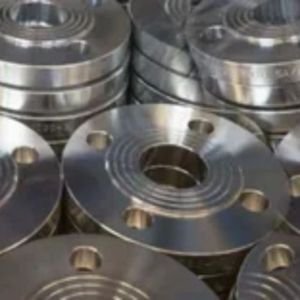

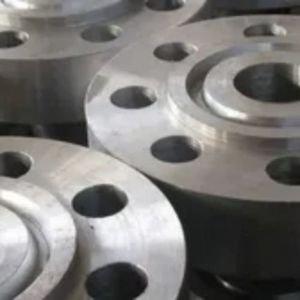

Lukies Flanges, a leading supplier in Kinshasa, Congo, offers an extensive selection of ANSI B16.47 Series B Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
|
ASME B16.47 Series B Slip On Flange Class 150 LBS Dimensions
|
|||||||||
|
NPS |
A |
B |
I |
Holes |
C |
D |
F |
G |
Weight |
|
22″ |
750 |
563.6 |
35 |
20 |
46 |
80 |
610 |
641 |
72.66 |
|
26″ |
870 |
665.2 |
35 |
24 |
68.5 |
90 |
724 |
749 |
120.47 |
|
28″ |
925 |
716 |
35 |
28 |
71.5 |
95 |
781 |
800 |
136.16 |
|
30″ |
985 |
766.8 |
35 |
28 |
74.5 |
100 |
832 |
857 |
161.04 |
|
32″ |
1060 |
817.6 |
41 |
28 |
81 |
106 |
889 |
914 |
205.07 |
|
34″ |
1110 |
868.4 |
41 |
32 |
82.5 |
110 |
940 |
965 |
216.76 |
|
36″ |
1170 |
919.2 |
41 |
32 |
90.5 |
120 |
997 |
1022 |
265 |
|
38″ |
1240 |
970 |
41 |
32 |
87.4 |
120 |
1060 |
1073 |
297.15 |
|
40″ |
1290 |
1020 |
41 |
36 |
90.5 |
125 |
1111 |
1124 |
319.65 |
|
42″ |
1345 |
1071.6 |
41 |
36 |
97 |
130 |
1168 |
1194 |
363.84 |
|
44″ |
1405 |
1122.4 |
41 |
40 |
102 |
136 |
1219 |
1245 |
414.1 |
|
46″ |
1455 |
1173.2 |
41 |
40 |
103 |
144 |
1270 |
1295 |
437 |
|
48″ |
1510 |
1224 |
41 |
44 |
108 |
150 |
1327 |
1359 |
484.52 |
|
50″ |
1570 |
1274.8 |
48 |
44 |
111 |
160 |
1378 |
1410 |
521.23 |
|
52″ |
1625 |
1325.6 |
48 |
44 |
116 |
170 |
1435 |
1460 |
581.51 |
|
54″ |
1685 |
1376.4 |
48 |
44 |
121 |
178 |
1492 |
1511 |
652.63 |
|
56″ |
1745 |
1427.2 |
48 |
48 |
124 |
188 |
1540 |
1575 |
713.31 |
|
58″ |
1805 |
1478 |
48 |
129 |
195 |
1590 |
1626 |
799.81 |
|
|
60″ |
1855 |
1528.8 |
48 |
52 |
132 |
200 |
1657 |
1676 |
836.15 |
|
ASME B16.47 Series B Slip On Flange Class 300 LBS Dimensions |
|||||||||
| NPS | A | B | I | Holes | C | D | F | G | Weight |
| 22″ | 840 | 563.6 | 41 | 24 | 66.5 | 100 | 640 | 641 | 159 |
| 26″ | 970 | 665.2 | 44 | 28 | 79.5 | 130 | 720 | 749 | 238.15 |
| 28″ | 1035 | 716 | 44 | 28 | 85.5 | 147 | 775 | 800 | 295.5 |
| 30″ | 1090 | 766.8 | 48 | 28 | 92 | 160 | 825 | 857 | 338.8 |
| 32″ | 1150 | 817.6 | 51 | 28 | 98.5 | 170 | 880 | 914 | 395.57 |
| 34″ | 1205 | 868.4 | 51 | 28 | 102 | 180 | 935 | 965 | 446.43 |
| 36″ | 1270 | 919.2 | 54 | 32 | 105 | 190 | 990 | 1022 | 502.9 |
| 38″ | 1170 | 970 | 41 | 32 | 108 | 140 | 995 | 1029 | 256.33 |
| 40″ | 1240 | 1020 | 44 | 32 | 114 | 150 | 1050 | 1086 | 316.78 |
| 42″ | 1290 | 1071.6 | 44 | 32 | 119 | 156 | 1100 | 1137 | 343.98 |
| 44″ | 1355 | 1122.4 | 48 | 32 | 124 | 160 | 1150 | 1194 | 394.78 |
| 46″ | 1415 | 1173.2 | 51 | 28 | 129 | 170 | 1205 | 1245 | 455.19 |
| 48″ | 1465 | 1224 | 51 | 32 | 133 | 180 | 1255 | 1314 | 482.1 |
| 50″ | 1530 | 1274.8 | 54 | 32 | 140 | 190 | 1305 | 1359 | 557.35 |
| 52″ | 1580 | 1325.6 | 54 | 32 | 144 | 198 | 1355 | 1410 | 595.56 |
| 54″ | 1660 | 1376.4 | 60 | 28 | 152 | 210 | 1410 | 1467 | 741.05 |
| 56″ | 1710 | 1427.2 | 60 | 28 | 154 | 220 | 1465 | 1518 | 786.03 |
| 58″ | 1760 | 1478 | 60 | 32 | 159 | 228 | 1515 | 1575 | 824.35 |
| 60″ | 1810 | 1528.8 | 60 | 32 | 164 | 235 | 1585 | 1620 | 904.14 |
ANSI B16.47 Series B flanges are typically made of carbon steel, stainless steel, or alloy steel, which are very strong and durable. The material has elements like carbon (0.25-0.30%), manganese (0.60-0.90%), and chromium (up to 2%), depending on the grade of the material.These flanges can be utilized for high pressure and temperature conditions. The mechanical properties include tensile strength ranging from 70 to 100 ksi (485 to 690 MPa), yield strength ranging from 30 to 60 ksi (205 to 415 MPa), and elongation up to 20%, showing long-lasting and stable performance in various industrial industries.
Yes, we offer custom sizes for ANSI B16.47 Series B Flanges to meet specific project needs. Our team at Lukies Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@lukiesflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
