Based in the heart of Kinshasa, Lukies Flanges is a trusted name for industrial strength and reliability. We specialize in providing robust JIS B2220 10K flanges, designed to meet the demanding needs of Congo’s growing industrial sector. Our commitment is to supply high-quality components that ensure secure and leak-proof connections for your critical piping systems. With a focus on local support and dependable service, we are your go-to partner for building and maintaining infrastructure that stands the test of time.
The JIS B2220 10K flanges we supply are crafted for durability, typically made from strong carbon steel. This material composition provides excellent mechanical properties, including a solid yield and tensile strength that can handle significant pressure. They are rated for a 10 kgf/cm² pressure class, making them a sturdy choice for various industrial applications. This combination of material and design ensures a reliable performance, offering the resilience needed for long-term operation in challenging environments.

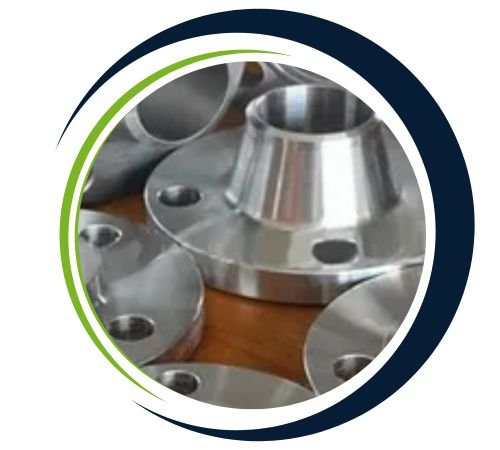

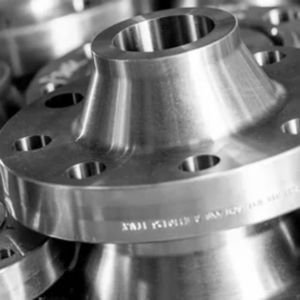

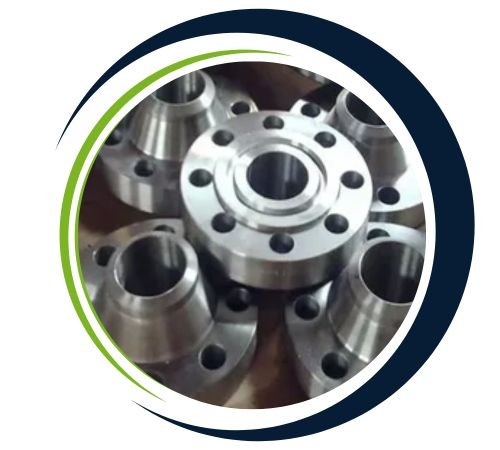

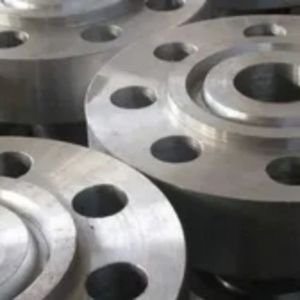

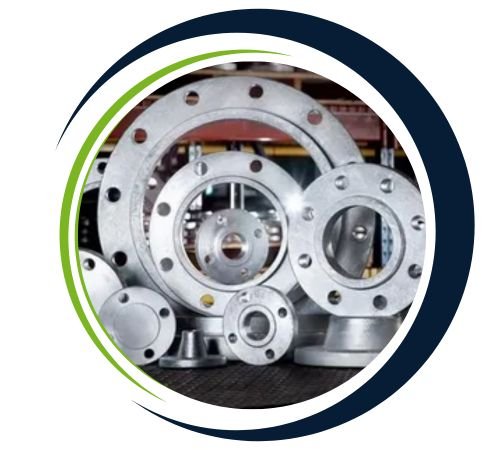

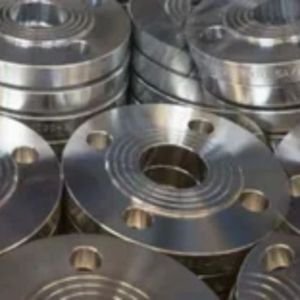

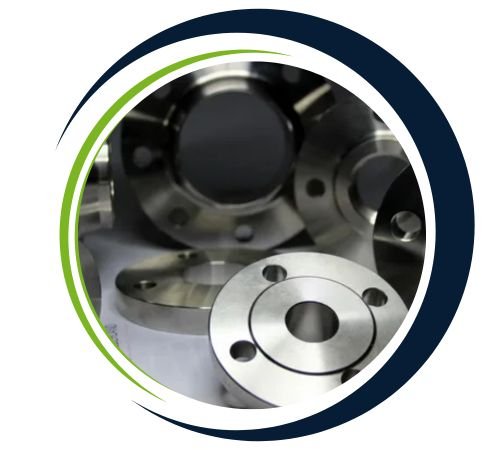

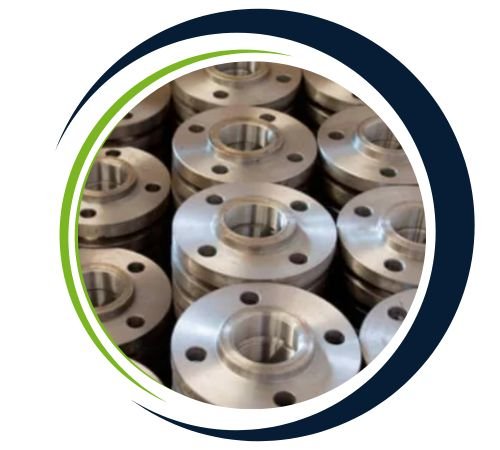

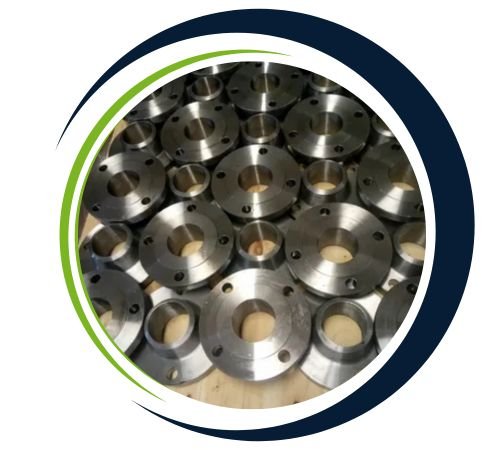

Lukies Flanges, a leading supplier in Kinshasa, Congo, offers an extensive selection of JIS B2220 10K Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size | (1/2″) To (48″) |
|---|---|
| Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Standard Dimensions | EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type Manufacturer | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Manufacturing Process | Forged/ Machined/ Heat Treated |
| Other Type Of Flange | Forged/ Plate/ Threaded |
| Nominal | Outside | Inside | Outside | Sectional Dimensions of Flange | Bolt Hole | Nor | Approx. | ||||||||||
| Dia. of | Dia. of | Dia.of | Dia. of | t | T | Dia. of Hub | r | Dia. of | Dia. of | Bolt. | No. | Hole | Bolt | Weight | |||
| Flange | Steel | Flange | Flange | a | b | Face | Rai- sed Face | Circle | of Bolt | Dia. | Size | (kg) | |||||
| Pipe | do | D | f | g | Dia | Holes | h | SOP | BL | SOH | |||||||
| 10 | 17.3 | 17.8 | 90.0 | 12 | – | – | – | – | 1 | 46 | 65 | 4 | 15 | M12 | 0.51 | 0.53 | – |
| 15 | 21.7 | 22.2 | 95.0 | 12 | – | – | – | – | 1 | 51 | 70 | 4 | 15 | M12 | 0.56 | 0.60 | – |
| 20 | 27.2 | 27.7 | 100.0 | 14 | – | – | – | – | 1 | 56 | 75 | 4 | 15 | M12 | 0.72 | 0.79 | – |
| 25 | 34.0 | 34.5 | 125.0 | 14 | – | – | – | – | 1 | 67 | 90 | 4 | 19 | M16 | 1.12 | 1.22 | – |
| 32 | 42.7 | 43.2 | 135.0 | 16 | – | – | – | – | 2 | 76 | 100 | 4 | 19 | M16 | 1.47 | 1.66 | – |
| 40 | 48.6 | 49.1 | 140.0 | 16 | – | – | – | – | 2 | 81 | 105 | 4 | 19 | M16 | 1.55 | 1.79 | – |
| 50 | 60.5 | 61.1 | 155.0 | 16 | – | – | – | – | 2 | 96 | 120 | 4 | 19 | M16 | 1.86 | 2.23 | – |
| 65 | 76.3 | 77.1 | 175.0 | 18 | – | – | – | – | 2 | 116 | 140 | 4 | 19 | M16 | 2.58 | 3.24 | – |
| 80 | 89.1 | 90.0 | 185.0 | 18 | – | – | – | – | 2 | 126 | 150 | 8 | 19 | M16 | 2.58 | 3.48 | – |
| (90) | 101.6 | 102.6 | 195.0 | 18 | – | – | – | – | 2 | 136 | 160 | 8 | 19 | M16 | 2.73 | 3.90 | – |
| 100 | 114.3 | 115.4 | 210.0 | 18 | – | – | – | – | 2 | 151 | 175 | 8 | 19 | M16 | 3.10 | 4.57 | – |
| 125 | 139.6 | 141.2 | 250.0 | 20 | – | – | – | – | 2 | 182 | 210 | 8 | 23 | M20 | 4.73 | 7.18 | – |
| 150 | 165.2 | 166.6 | 280.0 | 22 | – | – | – | – | 2 | 212 | 240 | 8 | 23 | M20 | 6.30 | 10.10 | – |
| (175) | 190.7 | 192.1 | 305.0 | 22 | – | – | – | – | 2 | 237 | 265 | 12 | 23 | M20 | 6.75 | 11.80 | – |
| 200 | 216.3 | 218.0 | 330.0 | 22 | – | – | – | – | 2 | 262 | 290 | 12 | 23 | M20 | 7.46 | 8.00 | – |
| (225) | 241.8 | 243.7 | 350.0 | 22 | – | – | – | – | 2 | 282 | 310 | 12 | 23 | M20 | 7.70 | 15.80 | – |
| 250 | 267.4 | 269.5 | 400.0 | 24 | 36 | 288 | 292 | 6 | 2 | 324 | 355 | 12 | 25 | M22 | 11.80 | 22.60 | 12.70 |
| 300 | 318.5 | 321.0 | 445.0 | 24 | 38 | 340 | 346 | 6 | 3 | 368 | 400 | 16 | 25 | M22 | 12.60 | 27.80 | 13.80 |
| 350 | 355.6 | 358.1 | 490.0 | 26 | 42 | 380 | 386 | 6 | 3 | 413 | 445 | 16 | 25 | M22 | 16.30 | 36.90 | 18.20 |
| 400 | 406.4 | 409.0 | 560.0 | 28 | 44 | 436 | 442 | 6 | 3 | 475 | 510 | 16 | 27 | M24 | 23.20 | 52.10 | 25.80 |
| 450 | 457.2 | 460.0 | 620.0 | 30 | 48 | 496 | 502 | 6 | 3 | 530 | 565 | 20 | 27 | M24 | 29.30 | 68.40 | 33.40 |
| 500 | 508.0 | 511.0 | 675.0 | 30 | 48 | 548 | 554 | 6 | 3 | 585 | 620 | 20 | 27 | M24 | 33.30 | 81.60 | 38.00 |
| (550) | 558.8 | 562.0 | 745.0 | 32(34) | 52 | 604 | 610 | 6 | 3 | 640 | 680 | 20 | 27 | M30 | 42.90 | 105(112) | 49.40 |
| 600 | 609.6 | 613.0 | 795.0 | 32(36) | 52 | 656 | 662 | 6 | 3 | 690 | 730 | 24 | 33 | M30 | 45.40 | 120(134) | 52.60 |
| (650) | 660.4 | 664.0 | 845.0 | 34(38) | 56 | 706 | 712 | 6 | 3 | 740 | 780 | 24 | 33 | M30 | 51.80 | 144(161) | 60.20 |
| 700 | 711.2 | 715.0 | 905.0 | 34(40) | 58 | 762 | 770 | 6 | 3 | 800 | 840 | 24 | 33 | M30 | 59.00 | 176(196) | 70.20 |
| (750) | 762.0 | 766.0 | 970.0 | 36(44) | 62 | 816 | 824 | 6 | 3 | 855 | 900 | 24 | 33 | M30 | 72.80 | 214(248) | 86.50 |
| 800 | 812.8 | 817.0 | 1020.0 | 36(46) | 64 | 868 | 876 | 6 | 3 | 905 | 950 | 28 | |||||
| JIS b2220 Standard | JIS b2220 Class | Diameter Of JIS | Bolt Circle Diameter | No. of Bolts | Size Of Bolt | Bolt Hole Diameter |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
JIS B2220 10K flanges are widely used in various industries for connecting pipes, valves, and equipment in systems under moderate pressure. Common applications include the oil and gas, chemical, power, and water treatment sectors. These flanges are ideal for pipelines, HVAC systems, and steam installations due to their ability to withstand moderate pressure and provide secure, leak-proof connections. They are also used in industries requiring high corrosion resistance and durable seals, such as in petrochemical plants, refineries, and food processing systems.
Yes, we offer custom sizes for JIS B2220 10K Flanges to meet specific project needs. Our team at Lukies Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@lukiesflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
