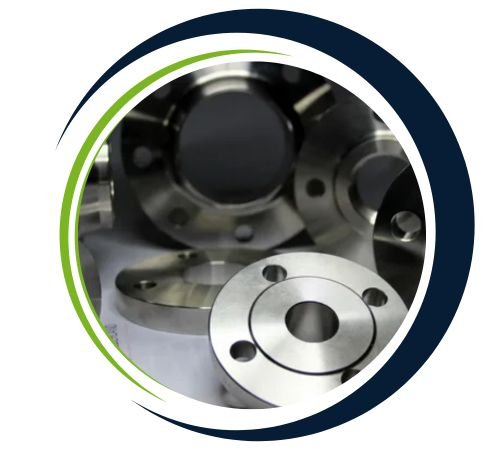

Lukies Flanges, based right here in Kinshasa, is your trusted local partner for robust industrial connections. We take pride in manufacturing and supplying high-quality JIS B2220 16K flanges, engineered to meet the demanding needs of Congo’s growing infrastructure and industrial projects. Our commitment is to provide reliable, readily available components that ensure the integrity and longevity of your piping systems, supporting local industry with products you can count on for strength and performance.
The JIS B2220 16K flange is crafted from durable carbon steel, offering an excellent balance of strength and weldability. This material provides strong mechanical properties, including a substantial pressure rating suitable for a wide range of industrial services. Essentially, it’s built to handle significant stress, creating a tight, secure seal in piping systems that must operate reliably under pressure, making it a dependable choice for many critical applications.

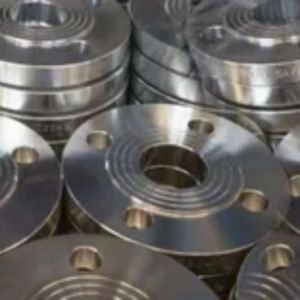

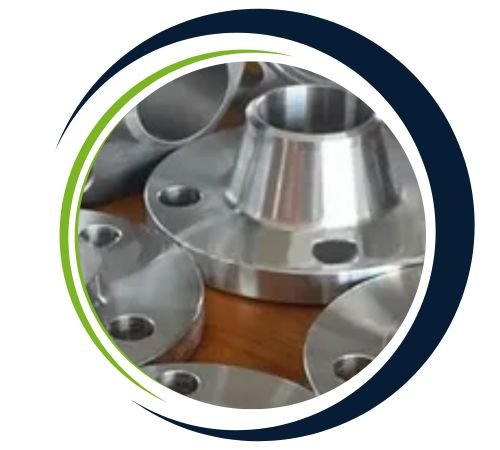

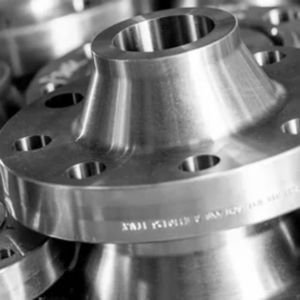

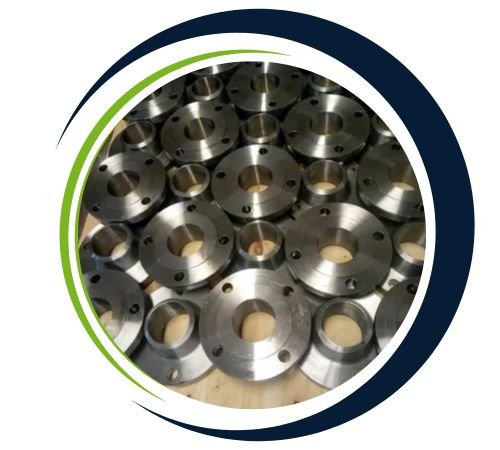

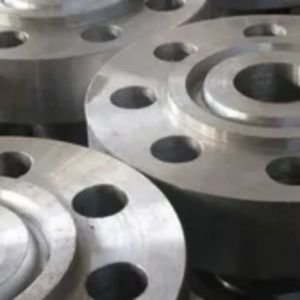

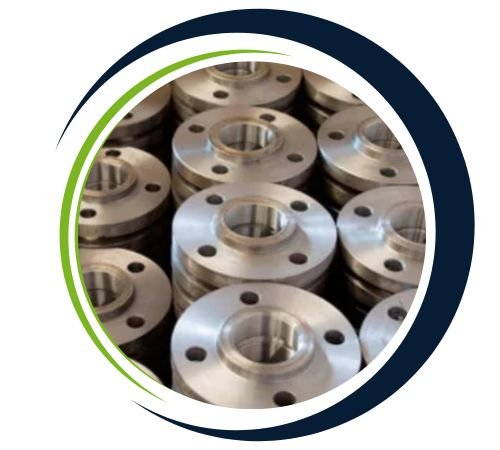

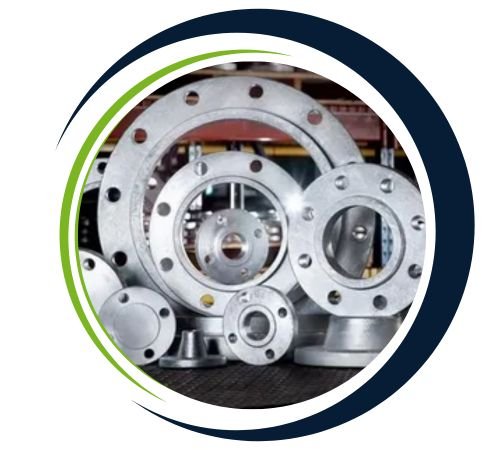

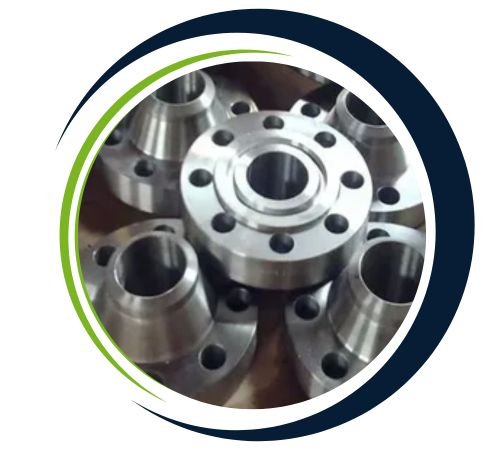

Lukies Flanges, a leading supplier in Kinshasa, Congo, offers an extensive selection of JIS B2220 16K Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size | (1/2″) To (48″) |
|---|---|
| Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Standard Dimensions | EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type Manufacturer | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Manufacturing Process | Forged/ Machined/ Heat Treated |
| Other Type Of Flange | Forged/ Plate/ Threaded |
| Nominal | Outside | Inside | Outside | Sectional Dimensions of Flange | Bolt Hole | Nominal | Approx. | |||||||||
| Dia. of | Dia. of | Dia. of | Dia. of | t | T | Dia. of Hub | r | Dia. of | Dia. of | Bolt. | Number | Hole | Bolt | Weight | ||
| Flange | Steel | Flange | Flange | a | b | Face | Raised Face | Circle | of Bolt | Dia. | Size | (kg) | ||||
| Pipe | do | D | f | g | Dia | Holes | h | BL | SOH | |||||||
| 10 | 17.3 | 17.8 | 90 | 12 | 16 | 26 | 28 | 4 | 1 | 46 | 65 | 4 | 15 | M12 | 0.53 | 0.52 |
| 15 | 21.7 | 22.2 | 95 | 12 | 16 | 30 | 32 | 4 | 1 | 51 | 70 | 4 | 15 | M12 | 0.6 | 0.58 |
| 20 | 27.2 | 27.7 | 100 | 14 | 20 | 38 | 42 | 4 | 1 | 56 | 75 | 4 | 15 | M12 | 0.79 | 0.75 |
| 25 | 34 | 34.5 | 125 | 14 | 20 | 46 | 50 | 4 | 1 | 67 | 90 | 4 | 19 | M16 | 1.22 | 1.16 |
| 32 | 42.7 | 43.2 | 135 | 16 | 22 | 56 | 60 | 5 | 2 | 76 | 100 | 4 | 19 | M16 | 1.66 | 1.53 |
| 40 | 48.6 | 49.1 | 140 | 16 | 24 | 62 | 66 | 5 | 2 | 81 | 105 | 4 | 19 | M16 | 1.79 | 1.64 |
| 50 | 60.5 | 61.1 | 155 | 16 | 24 | 76 | 80 | 5 | 2 | 96 | 120 | 8 | 19 | M16 | 2.09 | 1.83 |
| 65 | 76.3 | 77.1 | 175 | 18 | 26 | 94 | 98 | 5 | 2 | 116 | 140 | 8 | 19 | M16 | 3.08 | 2.58 |
| 80 | 89.1 | 90 | 200 | 20 | 28 | 108 | 112 | 6 | 2 | 132 | 160 | 8 | 23 | M20 | 4.41 | 3.61 |
| -90 | 101.6 | 102.6 | 210 | 20 | 30 | 120 | 124 | 6 | 2 | 145 | 170 | 8 | 23 | M20 | 4.92 | 3.89 |
| 100 | 114.3 | 115.4 | 225 | 22 | 34 | 134 | 138 | 6 | 2 | 160 | 185 | 8 | 23 | M20 | 6.29 | 4.87 |
| 125 | 139.8 | 141.2 | 270 | 22 | 34 | 164 | 170 | 6 | 2 | 195 | 225 | 8 | 25 | M22 | 9.21 | 7.09 |
| 150 | 165.2 | 166.6 | 305 | 24 | 38 | 196 | 202 | 6 | 2 | 230 | 260 | 12 | 25 | M22 | 12.7 | 9.57 |
| 200 | 216.3 | 218 | 350 | 26 | 40 | 244 | 252 | 6 | 2 | 275 | 305 | 12 | 25 | M22 | 18.4 | 12 |
| 250 | 267.4 | 269.5 | 430 | 28 | 44 | 304 | 312 | 6 | 2 | 345 | 380 | 12 | 27 | M24 | 30.4 | 20.1 |
| 300 | 318.5 | 321 | 480 | 30 | 48 | 354 | 364 | 8 | 3 | 395 | 430 | 16 | 27 | M24 | 40.5 | 24.3 |
| 350 | 355.6 | 358.1 | 540 | 34 | 52 | 398 | 408 | 8 | 3 | 440 | 480 | 16 | 33 | M30×3 | 57.5 | 34.4 |
| 400 | 406.4 | 409 | 605 | 38 | 60 | 446 | 456 | 10 | 3 | 495 | 540 | 16 | 33 | M30×3 | 81.7 | 47.4 |
| 450 | 457.2 | 460 | 675 | 40 | 64 | 504 | 514 | 10 | 3 | 560 | 605 | 20 | 33 | M30×3 | 107 | 61.8 |
| 500 | 508 | 511 | 730 | 42 | 68 | 558 | 568 | 10 | 3 | 615 | 660 | 20 | 33 | M30×3 | 132 | 73.7 |
| -550 | 558.8 | 562 | 795 | 44 | 70 | 612 | 622 | 10 | 3 | 670 | 720 | 20 | 39 | M36×3 | 163 | 87.9 |
| 600 | 609.6 | 613 | 845 | 46 | 74 | 666 | 676 | 10 | 3 | 720 | 770 | 24 | 39 | M36×3 | 192 | 98.4 |
| 650 | 660.4 | 664 | 895 | 48 | 77 | 704 | 726 | 10 | 5 | 770 | 820 | 24 | 39 | M36×3 | – | – |
| 700 | 711.2 | 715 | 960 | 50 | 80 | 754 | 776 | 10 | 5 | 820 | 875 | 24 | ||||
| JIS b2220 Standard | JIS b2220 Class | Diameter Of JIS | Bolt Circle Diameter | No. of Bolts | Size Of Bolt | Bolt Hole Diameter |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
JIS B2220 16K flanges are widely used in various industries for joining and sealing pipes, valves, pumps, and other equipment. Common applications include the oil and gas, petrochemical, water treatment, and construction sectors. These flanges are ideal for medium-pressure systems, offering reliable, leak-proof connections. They are commonly used in fluid and gas pipelines, heating systems, and HVAC applications. Their versatility and durability make them suitable for both high and low-temperature environments, ensuring efficient and safe operation across a variety of industrial settings.
Yes, we offer custom sizes for JIS B2220 16K Flanges to meet specific project needs. Our team at Lukies Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@lukiesflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
