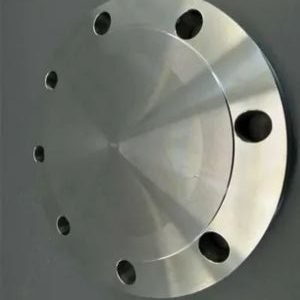

Lukies Flanges is a reputable manufacturer and supplier located in Kinshasa, Congo, focusing on top-notch **DIN 2527 PN10 Blind Flanges** that are crafted for the secure isolation of piping systems in various industrial settings. With a commitment to precision, these flanges offer leak-proof sealing, guaranteeing safe and dependable operation in pipelines, pressure vessels, and other equipment. Lukies Flanges adheres strictly to international standards, providing **DIN 2527 PN10 Blind Flanges** that are not only durable and corrosion-resistant but also suitable for industries like chemical processing, petrochemical, water treatment, and power generation.
These **DIN 2527 PN10 Blind Flanges** are constructed from high-quality carbon steel, stainless steel, or alloyed steel, tailored to meet specific application needs. They boast impressive mechanical properties, including high tensile and yield strength, hardness, and toughness. Designed to maintain integrity under pressures of up to 10 bar (PN10), they effectively resist wear, deformation, and corrosion in typical industrial conditions.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) | ||||
|---|---|---|---|---|---|---|---|
| D | b | k | Number | Thread | d2 | Shape B | |
| Kg | |||||||
| 15 | 95 | 14 | 65 | 4 | M 12 | 14 | 0,72 |
| 20 | 105 | 16 | 75 | 1,01 | |||
| 25 | 115 | 16 | 85 | 1,23 | |||
| 32 | 140 | 16 | 100 | M 16 | 18 | 1,8 | |
| 40 | 150 | 16 | 110 | 2,09 | |||
| 50 | 165 | 18 | 125 | 2,88 | |||
| 65 | 185 | 18 | 145 | 3,66 | |||
| 80 | 200 | 20 | 160 | 4,77 | |||
| 100 | 220 | 20 | 180 | 8 | 5,65 | ||
| 125 | 250 | 22 | 210 | 8,42 | |||
| 150 | 285 | 22 | 240 | M 20 | 22 | 10,4 | |
| 200 | 340 | 24 | 295 | 16,5 | |||
| 250 | 395 | 26 | 350 | 12 | 24 | ||
| 300 | 445 | 26 | 400 | 30,9 | |||
| 350 | 505 | 26 | 460 | 16 | 40,6 | ||
| 400 | 565 | 26 | 515 | M 24 | 26 | 49,4 | |
| 500 | 670 | 28 | 620 | 20 | 75 | ||
Lukies Flanges, a leading supplier in Kinshasa, Congo, offers an extensive selection of DIN 2527 PN10 Blind Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find **DIN 2527 PN10 Blind Flanges** commonly used to isolate pipelines for maintenance, inspection, or safety in chemical plants, water treatment facilities, refineries, and power generation sites. Their sturdy design ensures a secure, leak-proof seal at the end of a pipe or connection, promoting operational safety. With their durability, mechanical strength, and straightforward installation, **DIN 2527 PN10 Blind Flanges** are perfect for reliable, long-lasting performance across a range of industrial applications.
Yes, we offer custom sizes for DIN 2527 PN10 Blind Flanges to meet specific project needs. Our team at Lukies Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@lukiesflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| DIN 2527 PN10 BLRF Flange Stockist in Congo | Raised Faced DIN 2527 PN10 Slip-On flanges Dealer in Congo |
| Nickel Alloy DIN 2527 PN10 Blind Flange | Mild Steel DIN 2527 PN10 Blind Flange |
| Stainless Steel DIN 2527 PN10 Blind Flange | ASTM B564 Raised Faced DIN 2527 PN10 Blind Flanges |
| DIN 2527 PN10 Blind FF Flange Supplier | Suppliers of DIN 2527 PN10 Blind Flange |
| DIN 2527 PN10 Blind Flange Dimensions | Raised Face DIN 2527 PN10 Blind Flange Manufacturer |
| 18 inch DIN 2527 PN10 Carbon Steel Blind Flange | DIN 2527 PN10 Blind Flange Dimensions in mm |
| Alloy Steel DIN 2527 PN10 Blind Flanges | Copper Nickel DIN 2527 PN10 Blind Flanges at Best Price |
| 8 Inch DIN 2527 PN10 Blind Pipe Flanges | DIN 2527 PN10 Blind Flanges Stockist |
| DIN 2527 PN10 BLRF Flange Exporter | DIN 2527 PN10 Blind Flange Pressure Ratings |
| Raised Face DIN 2527 PN10 Blind Plate Flanges | Titanium DIN 2527 PN10 Blind Flanges |
| DIN 2527 PN10 Large Diameter Blind Flange | 30 Inch DIN 2527 PN10 Blind Pipe Flange Dimensions |
| 30 inch DIN 2527 PN10 Blind Flange Dealer | Raised Face DIN 2527 PN10 Blind Flanges Manufacturer |
| 4 inch Stainless Steel DIN 2527 PN10 Blind Flange | DIN 2527 PN10 Blind RF Flanges Stockholder |
| DIN 2527 PN10 Blind Flanges Supplier in Kinshasa | MS DIN 2527 PN10 Blind Flange |
| ASME SA105N Raised Faced DIN 2527 PN10 Blind Flanges | 18 inch Carbon Steel DIN 2527 PN10 Blind Flange |
| DIN 2527 PN10 Blind Flange Manufacturer | Flat Face DIN 2527 PN10 Blind Flange Manufacturer |
| DIN 2527 PN10 BLRF Flanges Distributor in Kisangani | Flat Face DIN 2527 PN10 Blind Flanges Exporter |
| German Standard DIN 2527 PN10 Blind Flanges | DIN 2527 PN10 Blind Flange Supplier in Congo |
| Carbon Steel DIN 2527 PN10 Blind Flange | DIN 2527 PN10 Blind RF Flange Supplier |
| Carbon Steel Raised Face DIN 2527 PN10 Blind Flange Stockist | Duplex Steel DIN 2527 PN10 BLRF Flanges Supplier in Kinshasa |
| DIN 2527 PN10 Blind Pipe Flanges Supplier in Lubumbashi | Duplex Steel DIN 2527 PN10 Blind Flanges |
| DIN 2527 PN10 BLRF Flanges Supplier in Bukavu | Alloy Steel DIN 2527 PN10 Blind Flanges Manufacturer in Congo |
| DIN 2527 PN10 Blind Pipe Flanges Wholesaler | DIN 2527 PN10 BLRF Flanges Supplier |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
