Operating from the heart of Kinshasa, Lukies Flanges is a trusted partner for industry across the Congo, providing robust and reliable piping solutions. We specialize in the supply and manufacturing of high-quality DIN 2632 PN10 weld neck flanges, components built to ensure the integrity and safety of critical pipeline systems. Our commitment is to deliver not just a product, but a foundation of strength for your operations, backed by local expertise and a deep understanding of the demanding conditions faced by regional industries.

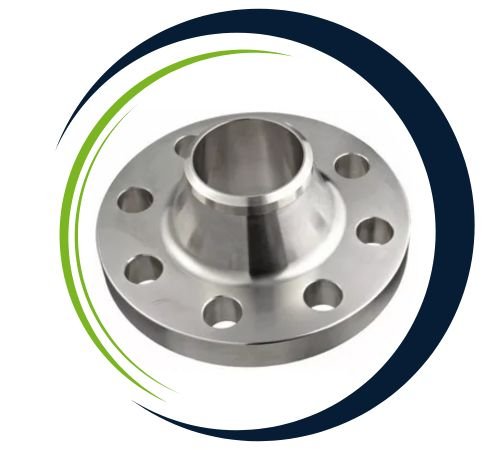

Crafted to meet rigorous standards, our flanges are typically manufactured from durable carbon steel, ensuring a composition that balances strength with practicality. This material provides excellent mechanical properties, including high tensile strength and good impact resistance, allowing the flange to handle the pressure rating of PN10 with confidence. The long, tapered hub of the weld neck design is key, as it provides crucial reinforcement to the weld joint, effectively distributing stress away from the pipe wall for a more secure and enduring connection.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
|
Germany standard flange DIN 2632 welding neck flanges; nominal pressure 10 |
||||||||||||||||
|
Brides à souder à collerette DIN 2632: pression nominale 10 |
||||||||||||||||
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
| (7,85 Kg/dm3) | ||||||||||||||||
| Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
| Diameter | ISO Series | DIN Series | ||||||||||||||
| 15 | – | 20 | 95 | 14 | 65 | 35 | 30 | 2 | 4 | 6 | 45 | 2 | 4 | M 12 | 14 | 0,648 |
| 21,3 | – | 32 | ||||||||||||||
| 20 | – | 25 | 105 | 16 | 75 | 38 | 38 | 2,3 | 4 | 6 | 58 | 2 | 4 | M 12 | 14 | 0,952 |
| 26,9 | – | 40 | ||||||||||||||
| 25 | – | 30 | 115 | 16 | 85 | 38 | 42 | 2,6 | 4 | 6 | 68 | 2 | 4 | M 12 | 14 | 1,14 |
| 33,7 | – | 45 | ||||||||||||||
| 32 | – | 38 | 140 | 16 | 100 | 40 | 52 | 2,6 | 6 | 6 | 78 | 2 | 4 | M 16 | 18 | 1,69 |
| 42,4 | – | 56 | ||||||||||||||
| 40 | – | 44,5 | 150 | 16 | 110 | 42 | 60 | 2,6 | 6 | 7 | 88 | 3 | 4 | M 16 | 18 | 1,86 |
| 48,3 | – | 64 | ||||||||||||||
| 50 | – | 57 | 165 | 18 | 125 | 45 | 72 | 2,9 | 6 | 8 | 102 | 3 | 4 | M 16 | 18 | 2,53 |
| 60,3 | – | 75 | ||||||||||||||
| 65 | 76,1 | – | 185 | 18 | 145 | 45 | 90 | 2,9 | 6 | 10 | 122 | 3 | 4 | M 16 | 18 | 3,06 |
| 80 | 88,9 | – | 200 | 20 | 160 | 50 | 105 | 3,2 | 8 | 10 | 138 | 3 | 8 | M 16 | 18 | 3,7 |
| 100 | – | 108 | 220 | 20 | 180 | 52 | 125 | 3,6 | 8 | 12 | 158 | 3 | 8 | M 16 | 18 | 4,62 |
| 114,3 | – | 131 | ||||||||||||||
| 125 | – | 133 | 250 | 22 | 210 | 55 | 150 | 4 | 8 | 12 | 188 | 3 | 8 | M 16 | 18 | 6,3 |
| 139,7 | – | 156 | ||||||||||||||
| 150 | – | 159 | 285 | 22 | 240 | 55 | 175 | 4,5 | 10 | 12 | 212 | 3 | 8 | M 20 | 22 | 7,75 |
| 168,3 | – | 184 | ||||||||||||||
| 200 | 219,1 | – | 340 | 24 | 295 | 62 | 235 | 5,9 | 10 | 16 | 268 | 3 | 8 | M 20 | 22 | 11,3 |
| 250 | – | 267 | 395 | 26 | 350 | 68 | 285 | 6,3 | 12 | 16 | 320 | 3 | 12 | M 20 | 22 | 14,7 |
| 273 | – | 292 | ||||||||||||||
| 300 | 323,9 | – | 445 | 26 | 400 | 68 | 344 | 7,1 | 12 | 16 | 370 | 4 | 12 | M 20 | 22 | 17,4 |
| 350 | 355,6 | – | 505 | 26 | 460 | 68 | 385 | 7,1 | 12 | 16 | 430 | 4 | 16 | M 20 | 22 | 23,6 |
| – | 368 | 21,6 | ||||||||||||||
| 400 | 406,4 | – | 565 | 26 | 515 | 72 | 440 | 7,1 | 12 | 16 | 482 | 4 | 16 | M 24 | 26 | 28,6 |
| – | 419 | 26,2 | ||||||||||||||
| (450) | 457 | – | 615 | 28 | 565 | 72 | 488 | 7,1 | 12 | 16 | 532 | 4 | 20 | M 24 | 26 | 31,5 |
| 500 | 508 | – | 670 | 28 | 620 | 75 | 542 | 7,1 | 12 | 16 | 585 | 4 | 20 | M 24 | 26 | 38,1 |
| 600 | 610 | – | 780 | 28 | 725 | 80 | 642 | 7,1 | 12 | 18 | 685 | 5 | 20 | M 27 | 30 | 44,6 |
| 700 | 711 | – | 895 | 30 | 840 | 80 | 745 | 8 | 12 | 18 | 800 | 5 | 24 | M 27 | 30 | 62,4 |
| 800 | 813 | – | 1015 | 32 | 950 | 90 | 850 | 8 | 12 | 18 | 905 | 5 | 24 | M 30 | 33 | 84,1 |
| 900 | 914 | – | 1115 | 34 | 1050 | 95 | 950 | 10 | 12 | 20 | 1005 | 5 | 28 | M 30 | 33 | 98,5 |
| 1000 | 1016 | – | 1230 | 34 | 1160 | 95 | 1052 | 10 | 16 | 20 | 1110 | 5 | 28 | M 33 | 36 | 115 |
Lukies Flanges, a leading supplier in Kinshasa, Congo, offers an extensive selection of DIN 2632 PN10 Weld Neck Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2632 PN10 Weld Neck Flanges are widely used in low to medium-pressure piping systems across industries such as oil and gas, petrochemicals, water treatment, and HVAC. These flanges provide secure, leak-proof connections between pipes, valves, and other equipment, ensuring system reliability. Their weld neck design minimizes stress at the connection points, making them ideal for applications with mild temperature and pressure fluctuations. Commonly used in pipelines and process systems, these flanges offer enhanced stability and alignment, helping maintain smooth operation and system integrity in critical applications.
Yes, we offer custom sizes for DIN 2632 PN10 Weld Neck Flanges to meet specific project needs. Our team at Lukies Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@lukiesflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| 18 inch DIN 2632 PN10 Carbon Steel Weld Neck Flange | DIN 2632 PN10 Weld Neck Flange Dimensions in mm |
| Alloy Steel DIN 2632 PN10 Welding Neck Flanges | Copper Nickel DIN 2632 PN10 Weld Neck Flanges at Best Price |
| DIN 2632 PN10 Weld Neck Flange Dimensions | Raised Face DIN 2632 PN10 Weld Neck Flange Manufacturer |
| DIN 2632 PN10 Welding Neck FF Flange Supplier | Suppliers of DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 Weld Neck Pipe Flanges Wholesaler | DIN 2632 PN10 WNRF Flanges Supplier |
| 30 inch DIN 2632 PN10 Weld Neck Flange Dealer | Raised Face DIN 2632 PN10 Weld Neck Flanges Manufacturer |
| Nickel Alloy DIN 2632 PN10 Welding Neck Flange | Mild Steel DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 WNRF Flange Stockist in Congo | Raised Faced DIN 2632 PN10 welding-neck flanges Dealer in Congo |
| Raised Face DIN 2632 PN10 Weld Neck Plate Flanges | Titanium DIN 2632 PN10 Welding Neck Flanges |
| German Standard DIN 2632 PN10 Weld Neck Flanges | DIN 2632 PN10 Weld Neck Flange Supplier in Congo |
| Stainless Steel DIN 2632 PN10 Weld Neck Flange | ASTM B564 Raised Faced DIN 2632 PN10 Weld Neck Flanges |
| DIN 2632 PN10 WNRF Flange Exporter | DIN 2632 PN10 Weld Neck Flange Pressure Ratings |
| DIN 2632 PN10 Weld Neck Flange Manufacturer | Flat Face DIN 2632 PN10 Weld Neck Flange Manufacturer |
| DIN 2632 PN10 WNRF Flanges Supplier in Kinshasa | Alloy Steel DIN 2632 PN10 Weld Neck Flanges Manufacturer in Congo |
| DIN 2632 PN10 Welding Neck Flanges Supplier in Mbuji-Mayi | MS DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 Large Diameter Weld Neck Flange | 30 Inch DIN 2632 PN10 Weld Neck Pipe Flange Dimensions |
| Carbon Steel Raised Face DIN 2632 PN10 Weld Neck Flange Stockist | Duplex Steel DIN 2632 PN10 WNRF Flanges Supplier in Kisangani |
| ASME SA105N Raised Faced DIN 2632 PN10 Weld Neck Flanges | 18 inch Carbon Steel DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 WNRF Flanges Distributor in Lubumbashi | Flat Face DIN 2632 PN10 Weld Neck Flanges Exporter |
| DIN 2632 PN10 Weld Neck Pipe Flanges Supplierin Kisangani | Duplex Steel DIN 2632 PN10 Weld Neck Flanges |
| 8 Inch DIN 2632 PN10 Welding Neck Pipe Flanges | DIN 2632 PN10 Weld Neck Flanges Stockist |
| 4 inch Stainless Steel DIN 2632 PN10 Weld Neck Flange | DIN 2632 PN10 Weld Neck RF Flanges Stockholder |
| Carbon Steel DIN 2632 PN10 Welding Neck Flange | DIN 2632 PN10 Weld Neck RF Flange Supplier |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
