Welcome to Lukies Flanges, your trusted partner for industrial solutions right here in Kinshasa. We specialize in manufacturing and supplying high-quality DIN 2527 PN25 Blind Flanges, engineered to meet the rigorous demands of the Congo’s diverse industries. Our commitment is to provide durable, reliable components that ensure the integrity and safety of your piping systems, supporting the vital work of local energy, mining, and infrastructure projects with products you can count on.

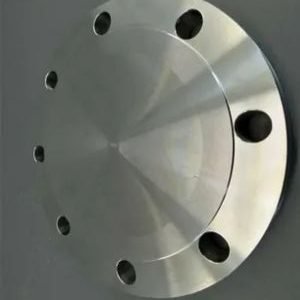

Our DIN 2527 PN25 Blind Flanges are crafted from robust carbon steel, ensuring exceptional strength and durability. This specific composition grants them outstanding mechanical properties, including a high pressure rating of 25 bar and excellent resistance to stress. They are designed to perform reliably under demanding conditions, providing a secure, permanent seal for piping systems where long-term performance and safety are absolutely essential.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| DIN 2527 PN25 (in mm) | ||||||
| Nominal Pipe Size | Flange Dia | Thk of Flange | Dia of Bolt Circle | No. of | Dia of Bolt Holes | |
| DIN | D | B | K | holes | D2 | KG |
| 90 | 90 | 16 | 60 | 4 | 14 | 0.72 |
| 95 | 95 | 16 | 65 | 4 | 14 | 0.81 |
| 105 | 105 | 18 | 75 | 4 | 14 | 1.14 |
| 115 | 115 | 18 | 85 | 4 | 14 | 1.38 |
| 140 | 140 | 18 | 100 | 4 | 18 | 2.03 |
| 150 | 150 | 18 | 110 | 4 | 18 | 2.35 |
| 165 | 165 | 20 | 125 | 4 | 18 | 3.20 |
| 185 | 185 | 22 | 145 | 4 | 18 | 4.29 |
| 200 | 200 | 24 | 160 | 8 | 18 | 5.54 |
| 235 | 220 | 24 | 190 | 8 | 22 | 7.60 |
| 270 | 250 | 26 | 220 | 8 | 26 | 10.82 |
| 300 | 285 | 28 | 250 | 8 | 26 | 14.60 |
| 330 | 315 | 28 | 280 | 8 | 26 | 17.40 |
| 360 | 340 | 30 | 310 | 12 | 26 | 22.47 |
| 425 | 405 | 32 | 370 | 12 | 30 | 33.51 |
| 485 | 460 | 34 | 430 | 12 | 30 | 46.29 |
| 555 | 520 | 38 | 490 | 16 | 33 | 68.08 |
| 620 | 580 | 40 | 550 | 16 | 36 | 89.59 |
| 730 | 715 | 45 | 660 | 20 | 36 | 140.66 |
| 845 | 780 | 48 | 770 | 20 | 39 | 202.30 |
| 960 | 895 | 50 | 875 | 24 | 42 | 271.05 |
| 1085 | 1015 | 54 | 990 | 24 | 48 | 373.52 |
| 1185 | 1115 | 58 | 1090 | 28 | 48 | 479.07 |
| 1320 | 1230 | 62 | 1210 | 28 | 56 | 632.47 |
Lukies Flanges, a leading supplier in Kinshasa, Congo, offers an extensive selection of DIN 2527 PN25 Blind Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2527 PN25 Blind Flanges are used to seal the ends of pipelines, valves, and equipment in moderate to high-pressure systems. They are widely employed in industries such as oil and gas, petrochemical, and water treatment for isolating sections of pipelines during maintenance, inspection, or repair. These flanges prevent leaks, contamination, and ensure the integrity of the system. Their durable construction and reliable sealing capabilities make them an essential component for managing pressure and maintaining operational efficiency in various industrial applications.
Yes, we offer custom sizes for DIN 2527 PN25 Blind Flanges to meet specific project needs. Our team at Lukies Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@lukiesflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
