Based in the heart of Kinshasa, Lukies Flanges stands as a dedicated partner for the region’s growing industrial needs. We specialize in the local manufacturing and supply of high-quality DIN 2631 PN6 weld neck flanges, providing reliable components that are essential for building and maintaining robust piping systems. Our commitment is to offer our clients in Congo and beyond not just a product, but a dependable solution that supports their projects with precision-engineered parts, ensuring strength and longevity where it matters most.

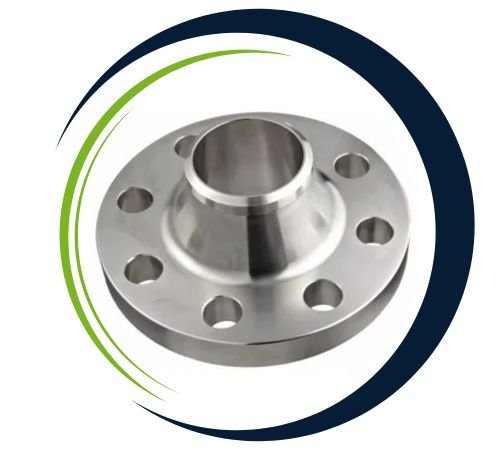

Crafted to meet the rigorous DIN 2631 standard for a Pressure Number of 6, these weld neck flanges are typically produced from durable carbon steel. This composition provides an excellent balance of strength and weldability, ensuring they can handle the designated pressure ratings with confidence. The long, tapered hub is a key feature, designed to distribute stress evenly away from the weld joint. This thoughtful engineering results in a flange that offers superior mechanical performance, making it a trusted choice for systems requiring a resilient and leak-proof connection.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (7,85 Kg/dm3) | ||||||||||||||||
| Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
| Diameter | ISO Series | DIN Series | ||||||||||||||
| 15 | – | 20 | 80 | 12 | 55 | 30 | 28 | 2 | 4 | 6 | 40 | 2 | 4 | M 10 | 11 | 0,392 |
| 21,3 | – | 30 | ||||||||||||||
| 20 | – | 25 | 90 | 14 | 65 | 32 | 35 | 2,3 | 4 | 6 | 50 | 2 | 4 | M 10 | 11 | 0,592 |
| 26,9 | – | 38 | ||||||||||||||
| 25 | – | 30 | 100 | 14 | 75 | 35 | 40 | 2,6 | 4 | 6 | 60 | 2 | 4 | M 10 | 11 | 0,747 |
| 33,7 | – | 42 | ||||||||||||||
| 32 | – | 38 | 120 | 14 | 90 | 35 | 50 | 2,6 | 6 | 6 | 70 | 2 | 4 | M 12 | 14 | 1,05 |
| 42,4 | – | 55 | ||||||||||||||
| 40 | – | 44,5 | 130 | 14 | 100 | 38 | 58 | 2,6 | 6 | 7 | 80 | 3 | 4 | M 12 | 14 | 1,18 |
| 48,3 | – | 62 | ||||||||||||||
| 50 | – | 57 | 140 | 14 | 110 | 38 | 70 | 2,9 | 6 | 8 | 90 | 3 | 4 | M 12 | 14 | 1,34 |
| 60,3 | – | 74 | ||||||||||||||
| 65 | 76,1 | – | 160 | 14 | 130 | 38 | 88 | 2,9 | 6 | 9 | 110 | 3 | 4 | M 12 | 14 | 1,67 |
| 80 | 88,9 | – | 190 | 16 | 150 | 42 | 102 | 3,2 | 8 | 10 | 128 | 3 | 4 | M 16 | 18 | 2,71 |
| 100 | – | 108 | 210 | 16 | 170 | 45 | 122 | 3,6 | 8 | 10 | 148 | 3 | 4 | M 16 | 18 | 3,24 |
| 114,3 | 130 | |||||||||||||||
| 125 | – | 133 | 240 | 18 | 200 | 48 | 148 | 4 | 8 | 10 | 178 | 3 | 8 | M 16 | 18 | 4,49 |
| 139,7 | – | 155 | ||||||||||||||
| 150 | – | 159 | 265 | 18 | 225 | 48 | 172 | 4,5 | 10 | 12 | 202 | 3 | 8 | M 16 | 18 | 5,15 |
| 168,3 | – | 184 | ||||||||||||||
| 200 | 219,1 | – | 320 | 20 | 280 | 55 | 236 | 5,9 | 10 | 15 | 258 | 3 | 8 | M 16 | 18 | 7,78 |
| 250 | – | 267 | 375 | 22 | 335 | 60 | 282 | 6,3 | 12 | 15 | 312 | 3 | 12 | M 16 | 18 | 10,8 |
| 273 | – | 290 | ||||||||||||||
| 300 | 323,9 | – | 440 | 22 | 395 | 62 | 342 | 7,1 | 15 | 15 | 365 | 4 | 12 | M 20 | 22 | 14 |
| 350 | 355,6 | – | 490 | 22 | 445 | 62 | 385 | 7,1 | 12 | 15 | 415 | 4 | 12 | M 20 | 22 | 18,5 |
| – | 368 | 16,7 | ||||||||||||||
| 400 | 406,4 | – | 540 | 22 | 495 | 65 | 438 | 7,1 | 12 | 15 | 465 | 4 | 16 | M 20 | 22 | 21,2 |
| – | 419 | 19 | ||||||||||||||
| 500 | 508 | – | 645 | 24 | 600 | 68 | 538 | 7,1 | 12 | 15 | 570 | 4 | 20 | M 20 | 22 | 28,6 |
| 600 | 610 | – | 755 | 24 | 705 | 70 | 640 | 7,1 | 12 | 16 | 670 | 5 | 20 | M 24 | 26 | 31,5 |
| 700 | 711 | – | 860 | 24 | 810 | 70 | 740 | 7,1 | 12 | 16 | 775 | 5 | 24 | M 24 | 26 | 37,4 |
| 800 | 813 | – | 975 | 24 | 920 | 70 | 842 | 7,1 | 12 | 16 | 880 | 5 | 24 | M 27 | 30 | 46,1 |
| 900 | 914 | – | 1075 | 26 | 1020 | 70 | 942 | 7,1 | 12 | 16 | 980 | 5 | 24 | M 27 | 30 | 55,6 |
| 1000 | 1016 | – | 1175 | 26 | 1120 | 70 | 1045 | 7,1 | 16 | 16 | 1080 | 5 | 28 | M 27 | 30 | 61,9 |
Lukies Flanges, a leading supplier in Kinshasa, Congo, offers an extensive selection of DIN 2631 PN6 Weld Neck Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2631 PN6 Weld Neck Flanges are primarily used in low-pressure piping systems across industries such as oil and gas, petrochemical, water treatment, and HVAC. Their design allows for secure, leak-proof connections and minimizes stress at the base, making them ideal for systems where temperature and pressure may fluctuate mildly. These flanges are commonly installed in pipelines, pumps, and valves, providing stability and alignment. Their durability and precise fit make them essential for ensuring efficient flow and system integrity in low-pressure applications.
Yes, we offer custom sizes for DIN 2631 PN6 Weld Neck Flanges to meet specific project needs. Our team at Lukies Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@lukiesflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| Nickel Alloy DIN 2631 PN6 Welding Neck Flange | Mild Steel DIN 2631 PN6 Weld Neck Flange |
| Carbon Steel DIN 2631 PN6 Welding Neck Flange | DIN 2631 PN6 Weld Neck RF Flange Supplier in Congo |
| DIN 2631 PN6 Weld Neck Flange Dimensions | Raised Face DIN 2631 PN6 Weld Neck Flange Manufacturer |
| 18 inch DIN 2631 PN6 Carbon Steel Weld Neck Flange | DIN 2631 PN6 Weld Neck Flange Dimensions in mm |
| Alloy Steel DIN 2631 PN6 Welding Neck Flanges | Copper Nickel DIN 2631 PN6 Weld Neck Flanges at Best Price |
| DIN 2631 PN6 Welding Neck FF Flange Supplier | Suppliers of DIN 2631 PN6 Weld Neck Flange |
| German Standard DIN 2631 PN6 Weld Neck Flanges | DIN 2631 PN6 Weld Neck Flange Supplier in Congo
|
| DIN 2631 PN6 Weld Neck Flange Manufacturer | Flat Face DIN 2631 PN6 Weld Neck Flange Manufacturer |
| DIN 2631 PN6 WNRF Flange Stockist in Congo | Raised Faced DIN 2631 PN6 welding-neck flanges Dealer in Congo |
| Stainless Steel DIN 2631 PN6 Weld Neck Flange | ASTM B564 Raised Faced DIN 2631 PN6 Weld Neck Flanges |
| DIN 2631 PN6 WNRF Flange Exporter | DIN 2631 PN6 Weld Neck Flange Pressure Ratings |
| Raised Face DIN 2631 PN6 Weld Neck Plate Flanges | Titanium DIN 2631 PN6 Welding Neck Flanges |
| DIN 2631 PN6 WNRF Flanges Supplier in Lubumbashi | Alloy Steel DIN 2631 PN6 Weld Neck Flanges Manufacturer in Congo |
| DIN 2631 PN6 Weld Neck Pipe Flanges Supplier in Kisangani | Duplex Steel DIN 2631 PN6 Weld Neck Flanges |
| 4 inch Stainless Steel DIN 2631 PN6 Weld Neck Flange | DIN 2631 PN6 Weld Neck RF Flanges Stockholder |
| DIN 2631 PN6 Welding Neck Flanges Supplier in Kinshasa | MS DIN 2631 PN6 Weld Neck Flange |
| 30 inch DIN 2631 PN6 Weld Neck Flange Dealer | Raised Face DIN 2631 PN6 Weld Neck Flanges Manufacturer |
| 8 Inch DIN 2631 PN6 Welding Neck Pipe Flanges | DIN 2631 PN6 Weld Neck Flanges Stockist |
| Carbon Steel Raised Face DIN 2631 PN6 Weld Neck Flange Stockist | Duplex Steel DIN 2631 PN6 WNRF Flanges Supplier in Kinshasa |
| ASME SA105N Raised Faced DIN 2631 PN6 Weld Neck Flanges | 18 inch Carbon Steel DIN 2631 PN6 Weld Neck Flange |
| DIN 2631 PN6 Weld Neck Pipe Flanges Wholesaler | DIN 2631 PN6 WNRF Flanges Supplier |
| DIN 2631 PN6 Large Diameter Weld Neck Flange | 30 Inch DIN 2631 PN6 Weld Neck Pipe Flange Dimensions |
| DIN 2631 PN6 WNRF Flanges Distributor in Kinshasa | Flat Face DIN 2631 PN6 Weld Neck Flanges Exporter |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
