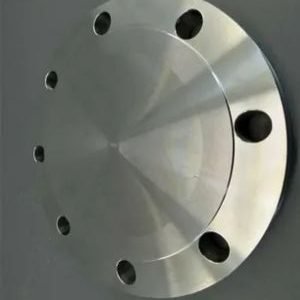

Nestled in the heart of Kinshasa, Lukies Flanges stands as a dedicated manufacturer and supplier for the region’s growing industrial needs. We take particular pride in producing high-quality DIN 2527 PN16 blind flanges. These components are crafted with precision to ensure reliable performance, providing a dependable and safe solution for sealing the ends of pipes, valves, and pressure vessels in demanding applications across Congo.
Our DIN 2527 PN16 blind flanges are manufactured from robust materials, typically carbon or stainless steel, to meet exacting standards. The composition ensures excellent resistance to pressure and corrosion, while the PN16 rating guarantees a solid seal against 16 bar of pressure at elevated temperatures. These flanges are engineered with specific mechanical properties, including high tensile strength and durability, to withstand the rigors of industrial environments, ensuring a long and dependable service life.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) | ||||
|---|---|---|---|---|---|---|---|
| D | b | k | Number | Thread | d2 | Shape B | |
| Kg | |||||||
| 15 | 95 | 14 | 65 | 4 | M 12 | 14 | 0,72 |
| 20 | 105 | 16 | 75 | 1,01 | |||
| 25 | 115 | 16 | 85 | 1,23 | |||
| 32 | 140 | 16 | 100 | M 16 | 18 | 1,8 | |
| 40 | 150 | 16 | 110 | 2,09 | |||
| 50 | 165 | 18 | 125 | 2,88 | |||
| 65 | 185 | 18 | 145 | 3,66 | |||
| 80 | 200 | 20 | 160 | 8 | 4,77 | ||
| 100 | 220 | 20 | 180 | 5,65 | |||
| 125 | 250 | 22 | 210 | 8,42 | |||
| 150 | 285 | 22 | 240 | M 20 | 22 | 10,4 | |
| 200 | 340 | 24 | 295 | 12 | 16,1 | ||
| 250 | 405 | 26 | 355 | M 24 | 26 | 24,9 | |
| 300 | 460 | 28 | 410 | 35,1 | |||
| 350 | 520 | 30 | 470 | 16 | 47,8 | ||
| 400 | 580 | 32 | 525 | M 27 | 30 | 63,5 | |
| 500 | 715 | 36 | 650 | 20 | M 30 | 33 | 102 |
Lukies Flanges, a leading supplier in Kinshasa, Congo, offers an extensive selection of DIN 2527 PN16 Blind Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2527 PN16 Blind Flanges are primarily used to seal the ends of pipelines, valves, and pressure vessels in moderate-pressure systems. They are essential in industries like oil and gas, petrochemical, water treatment, and chemical processing, where they help isolate sections of piping for maintenance, repair, or system upgrades. These flanges prevent leakage and contamination, ensuring the integrity of the system. Their durability and ability to handle pressure make them ideal for applications that require secure, leak-proof closures while maintaining optimal system performance.
Yes, we offer custom sizes for DIN 2527 PN16 Blind Flanges to meet specific project needs. Our team at Lukies Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@lukiesflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| Carbon Steel Raised Face DIN 2527 PN16 Blind Flange Stockist | Duplex Steel DIN 2527 PN16 BLRF Flanges Supplier in Kinshasa |
| DIN 2527 PN16 Blind Pipe Flanges Supplier in Kinshasa | Duplex Steel DIN 2527 PN16 Blind Flanges |
| DIN 2527 PN16 Blind FF Flange Supplier | Suppliers of DIN 2527 PN16 Blind Flange |
| DIN 2527 PN16 Blind Flange Dimensions | Raised Face DIN 2527 PN16 Blind Flange Manufacturer |
| Nickel Alloy DIN 2527 PN16 Blind Flange | Mild Steel DIN 2527 PN16 Blind Flange |
| DIN 2527 PN16 Blind Flange Manufacturer | Flat Face DIN 2527 PN16 Blind Flange Manufacturer |
| Stainless Steel DIN 2527 PN16 Blind Flange | ASTM B564 Raised Faced DIN 2527 PN16 Blind Flanges |
| 18 inch DIN 2527 PN16 Carbon Steel Blind Flange | DIN 2527 PN16 Blind Flange Dimensions in mm |
| Alloy Steel DIN 2527 PN16 Blind Flanges | Copper Nickel DIN 2527 PN16 Blind Flanges at Best Price |
| 8 Inch DIN 2527 PN16 Blind Pipe Flanges | DIN 2527 PN16 Blind Flanges Stockist |
| DIN 2527 PN16 BLRF Flanges Distributor in Kisangani | Flat Face DIN 2527 PN16 Blind Flanges Exporter |
| Raised Face DIN 2527 PN16 Blind Plate Flanges | Titanium DIN 2527 PN16 Blind Flanges |
| DIN 2527 PN16 Large Diameter Blind Flange | 30 Inch DIN 2527 PN16 Blind Pipe Flange Dimensions |
| 30 inch DIN 2527 PN16 Blind Flange Dealer | Raised Face DIN 2527 PN16 Blind Flanges Manufacturer |
| ASME SA105N Raised Faced DIN 2527 PN16 Blind Flanges | 18 inch Carbon Steel DIN 2527 PN16 Blind Flange |
| German Standard DIN 2527 PN16 Blind Flanges | DIN 2527 PN16 Blind Flange Supplier in Congo |
| Carbon Steel DIN 2527 PN16 Blind Flange | DIN 2527 PN16 Blind RF Flange Supplier |
| 4 inch Stainless Steel DIN 2527 PN16 Blind Flange | DIN 2527 PN16 Blind RF Flanges Stockholder |
| DIN 2527 PN16 Blind Flanges Supplier in Lubumbashi | MS DIN 2527 PN16 Blind Flange |
| DIN 2527 PN16 Blind Pipe Flanges Wholesaler | DIN 2527 PN16 BLRF Flanges Supplier |
| DIN 2527 PN16 BLRF Flanges Supplier in Bukavu | Alloy Steel DIN 2527 PN16 Blind Flanges Manufacturer in Congo |
| DIN 2527 PN16 BLRF Flange Exporter | DIN 2527 PN16 Blind Flange Pressure Ratings |
| DIN 2527 PN16 BLRF Flange Stockist in Congo | Raised Faced DIN 2527 PN16 Slip-On flanges Dealer in Congo |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
