Located in the heart of Kinshasa, Lukies Flanges stands as a trusted partner for industry across Congo. We specialize in the local manufacturing and reliable supply of critical pipeline components, with a particular focus on our robust DIN 2527 PN40 Blind Flanges. Our commitment is to provide Congolese businesses with high-quality, readily available solutions that meet rigorous international standards, ensuring your operations run smoothly and efficiently without the delays of international sourcing.

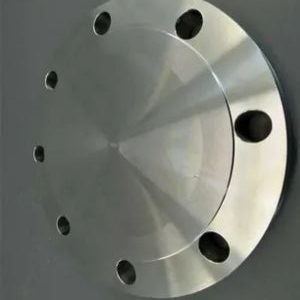

Our DIN 2527 PN40 Blind Flanges are crafted with precision from high-grade materials, typically carbon steel, to ensure exceptional strength and durability. They are engineered to meet the strict composition and mechanical properties outlined in the DIN 2527 standard for a pressure rating of PN40. This means they are built to withstand high internal pressures and demanding mechanical stresses, providing a secure and permanent seal for your piping systems.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| DIN 2527 PN40 (in mm) | ||||||
| Nominal Pipe Size | Flanges Dia | Thk of Flange | Dia of Bolt Circle | No. of | Dia of Bolt Holes | |
| DIN | D | B | K | holes | D2 | KG |
| 10 | 90 | 16 | 60 | 4 | 14 | 0.72 |
| 15 | 95 | 16 | 65 | 4 | 14 | 0.81 |
| 20 | 105 | 18 | 75 | 4 | 14 | 1.14 |
| 25 | 115 | 18 | 85 | 4 | 14 | 1.38 |
| 32 | 140 | 18 | 100 | 4 | 18 | 2.03 |
| 40 | 150 | 18 | 110 | 4 | 18 | 2.35 |
| 50 | 165 | 20 | 125 | 4 | 18 | 3.20 |
| 65 | 185 | 22 | 145 | 8 | 18 | 4.29 |
| 80 | 200 | 24 | 160 | 8 | 18 | 5.54 |
| 100 | 235 | 24 | 190 | 8 | 22 | 7.60 |
| 125 | 270 | 26 | 220 | 8 | 26 | 10.82 |
| 150 | 300 | 28 | 250 | 8 | 26 | 14.60 |
| 175 | 350 | 32 | 295 | 12 | 30 | 22.04 |
| 200 | 375 | 34 | 320 | 12 | 30 | 27.21 |
| 250 | 450 | 38 | 385 | 12 | 33 | 44.38 |
| 300 | 515 | 42 | 450 | 16 | 33 | 64.17 |
| 350 | 580 | 46 | 510 | 16 | 36 | 89.52 |
| 400 | 660 | 50 | 585 | 16 | 39 | 126.76 |
| 500 | 755 | 56 | 670 | 20 | 42 | 184.63 |
| 600 | 890 | 62 | 795 | 20 | 48 | 285.17 |
| 700 | 995 | 64 | 900 | 24 | 48 | 368.83 |
| 800 | 1140 | 70 | 1030 | 24 | 56 | 528.39 |
| 900 | 1250 | 76 | 1140 | 28 | 56 | 690.99 |
| 1000 | 1360 | 84 | 1250 | 28 | 56 | 912.42 |
Lukies Flanges, a leading supplier in Kinshasa, Congo, offers an extensive selection of DIN 2527 PN40 Blind Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2527 PN40 Blind Flanges are primarily used to seal the ends of pipelines, valves, and pressure vessels in high-pressure systems. They are crucial in industries such as oil and gas, petrochemical, chemical processing, and water treatment, where they help isolate sections of pipelines during maintenance, repairs, or system modifications. These flanges provide reliable, leak-proof closures, ensuring the integrity and safety of the system. Their high strength and durability make them ideal for applications that require secure sealing in demanding, high-pressure environments.
Yes, we offer custom sizes for DIN 2527 PN40 Blind Flanges to meet specific project needs. Our team at Lukies Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@lukiesflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| DIN 2527 PN40 Blind Pipe Flanges Wholesaler | DIN 2527 PN40 BLRF Flanges Supplier |
| Carbon Steel Raised Face DIN 2527 PN40 Blind Flange Stockist | Duplex Steel DIN 2527 PN40 BLRF Flanges Supplier in Bukavu |
| Stainless Steel DIN 2527 PN40 Blind Flange | ASTM B564 Raised Faced DIN 2527 PN40 Blind Flanges |
| DIN 2527 PN40 Large Diameter Blind Flange | 30 Inch DIN 2527 PN40 Blind Pipe Flange Dimensions |
| 30 inch DIN 2527 PN40 Blind Flange Dealer | Raised Face DIN 2527 PN40 Blind Flanges Manufacturer |
| DIN 2527 PN40 Blind Pipe Flanges Supplier in Kinshasa | Duplex Steel DIN 2527 PN40 Blind Flanges |
| 4 inch Stainless Steel DIN 2527 PN40 Blind Flange | DIN 2527 PN40 Blind RF Flanges Stockholder |
| Carbon Steel DIN 2527 PN40 Blind Flange | DIN 2527 PN40 Blind RF Flange Supplier |
| Alloy Steel DIN 2527 PN40 Blind Flanges | Copper Nickel DIN 2527 PN40 Blind Flanges at Best Price |
| DIN 2527 PN40 Blind Flange Dimensions | Raised Face DIN 2527 PN40 Blind Flange Manufacturer |
| Raised Face DIN 2527 PN40 Blind Plate Flanges | Titanium DIN 2527 PN40 Blind Flanges |
| Nickel Alloy DIN 2527 PN40 Blind Flange | Mild Steel DIN 2527 PN40 Blind Flange |
| DIN 2527 PN40 BLRF Flanges Distributor in Kinshasa | Flat Face DIN 2527 PN40 Blind Flanges Exporter |
| DIN 2527 PN40 BLRF Flange Stockist in Congo | Raised Faced DIN 2527 PN40 Slip-On flanges Dealer in Congo |
| 18 inch DIN 2527 PN40 Carbon Steel Blind Flange | DIN 2527 PN40 Blind Flange Dimensions in mm |
| DIN 2527 PN40 Blind Flanges Supplier in Kisangani | MS DIN 2527 PN40 Blind Flange |
| 8 Inch DIN 2527 PN40 Blind Pipe Flanges | DIN 2527 PN40 Blind Flanges Stockist |
| DIN 2527 PN40 BLRF Flanges Supplier in Lubumbashi | Alloy Steel DIN 2527 PN40 Blind Flanges Manufacturer in Congo |
| ASME SA105N Raised Faced DIN 2527 PN40 Blind Flanges | 18 inch Carbon Steel DIN 2527 PN40 Blind Flange |
| German Standard DIN 2527 PN40 Blind Flanges | DIN 2527 PN40 Blind Flange Supplier in Congo |
| DIN 2527 PN40 Blind FF Flange Supplier | Suppliers of DIN 2527 PN40 Blind Flange |
| DIN 2527 PN40 Blind Flange Manufacturer | Flat Face DIN 2527 PN40 Blind Flange Manufacturer |
| DIN 2527 PN40 BLRF Flange Exporter | DIN 2527 PN40 Blind Flange Pressure Ratings |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
